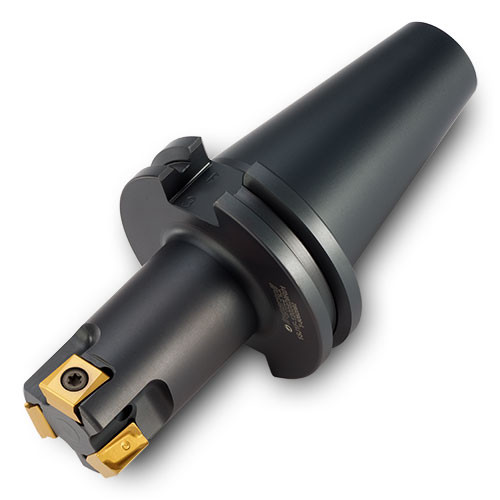

1SJ1F-1502829R01
Indexable End Mill; 1-1/2″ Dia. × 0.42″ Max Depth × 5.562″ OAL × 2.065″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Functional Length (LF) | 2-7/8″ |
| Cutting Diameter (DC) | 1-1/2″ | Usable Length (LU) | 2.065″ |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.42″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5.562″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Measurement Type | Inch |
| Application | | Facing | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | .42″ Max. depth of cut 11 mm Insert with 4 indexes Insert corners: .031″, .062″, .093″, .125″ R | Country of Origin | Usa |
