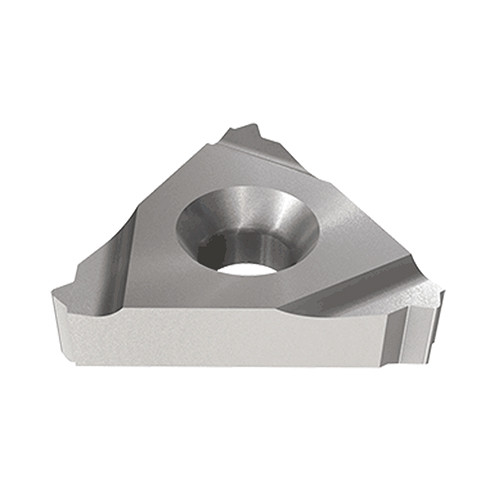

16ER 20 PG IC908
Laydown Threading Insert ; 1.27 mm TP ; 20 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Application | | External Threading | |

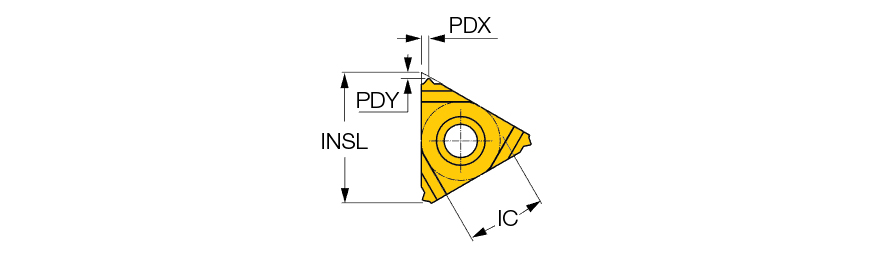

| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.27 mm | Shape | 60° Triangle |
| Threads per Inch (TPI) | 20 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0051″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | PG |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0276″ |
| Cutting Position | External |
Product Features
| Family Description | External threading inserts the for electric industry. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info |
Shipping Info
Package Weight
0.013
