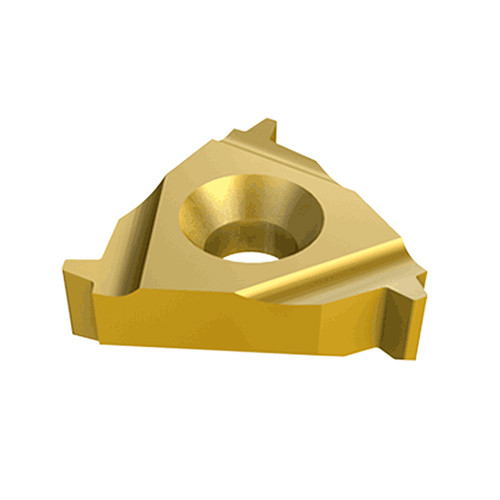

16IL 8 ACME IC908
Laydown Threading Insert ; 8 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 8 | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | AC29 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.059″ |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info ACME ASME/ANSI B1.5-1988 Class 3G |
Shipping Info
Package Weight
0.015
