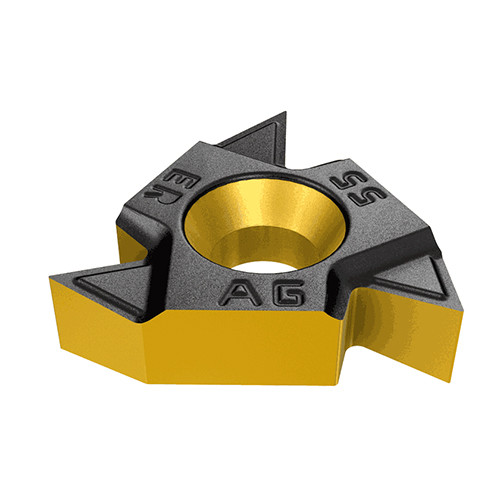

11ER A 55 IC250
Laydown Threading Insert ; 60 Triangle Shape ; 0.433″ Length ; 1/4″ IC ; THFT | ; Carbide ; IC250 ; TiCN+TiN

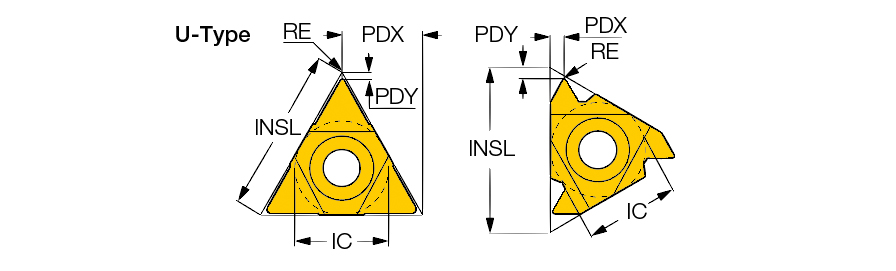

| Thread Standard | THFT | | Shape | 60° Triangle |
| Inscribed Circle Diameter (IC) | 1/4″ | Threads per Inch Minimum (TPIN) | 16 |
| Insert Length (INSL) | 0.433″ | Threads per Inch Maximum (TPIX) | 48 |
| Corner Radius (RE) | 0.002″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | IC250 | Thread Pitch Maximum (TPX) | 1.5 mm |
| Coating | TiCN+TiN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Thread Form Type (THFT) | VP55 |
| Applicable Material | | Steel | Stainless Steel | | Profile Distance EY (PDY) | 0.0315″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External 55° partial profile, laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general applications | Country of Origin | Israel |
| Remarks | For insert identification system, click on More Info For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT |
Shipping Info
Package Weight
0.005
