15M1P035043X8R00

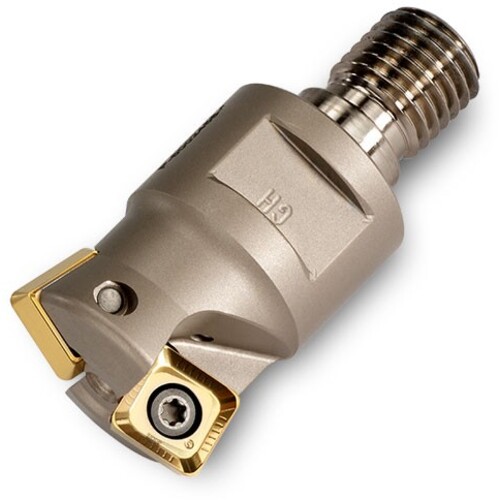

Indexable End Mill; 1.378″ Dia. × 0.087″ LOC ; 12 Degrees

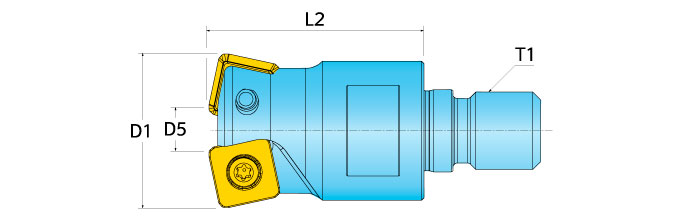

| Cutting Diameter (DC/DCX) | 1.378″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.549″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.087″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 4 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | | Hub Diameter (DHUB) | 1.142″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 1.693″ | Cutting Diameter Maximum (DCX) | 1.378″ |
| Corner Radius (RE) | 1/8″ |
Product Features
| Family Description | .088″ Max. depth of cut Inch & metric cutter diameters | Country of Origin | Germany |
Shipping Info
Package Weight
0.448
