16IR12ACME TT9030

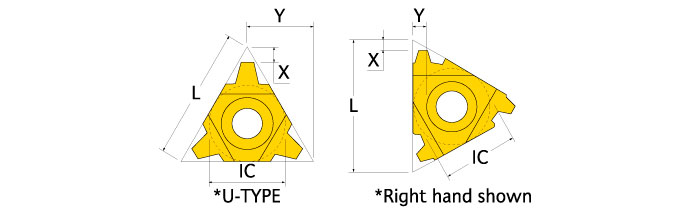

Laydown Threading Insert; 16IR12ACME TT9030 ; 12 TPI × 0.63″ Length × 3/8″ IC ; Carbide ; TiAlN
| Thread Standard | THFT | | Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.63″ | Insert Style | Regular |
| Thread Pitch (TP) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.21 mm | Cutting Item Count (CICT) | 2 |
| Grade | TT9030 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | ASME/ANSI B1.5-1988 Class: 3G | Country of Origin | S.Korea |
Shipping Info
Package Weight
0
