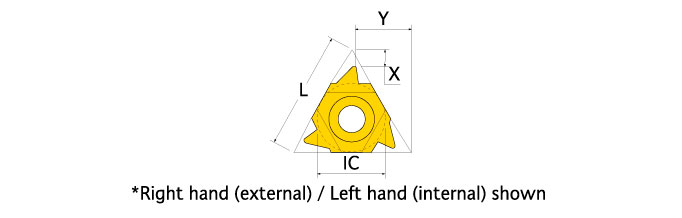

22UIR4ABUT TT7010
Laydown Threading Insert; 22UIR4ABUT TT7010 ; 4 TPI × 0.866″ Length × 1/2″ IC ; Carbide
| Thread Standard | THFT | | Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.866″ | Insert Style | U-Type |
| Thread Pitch (TP) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 4 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.21 mm | Cutting Item Count (CICT) | 2 |
| Grade | TT7010 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | ANSI B1.9-1973 Class 2 | Country of Origin | Israel |
Shipping Info
Package Weight
0.04
