27ER 4 API 503 IC908

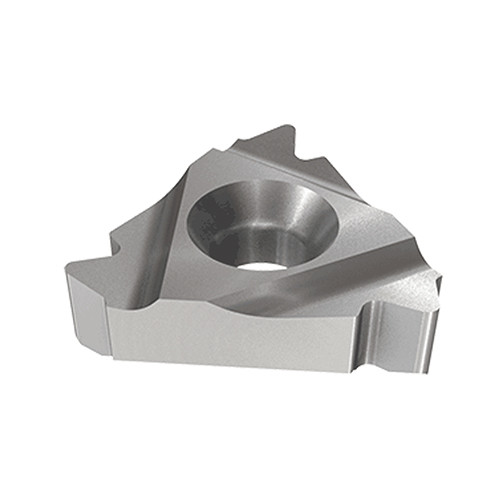

Laydown Threading Insert ; 4 TPI ; 60 Triangle Shape ; 1.083″ Length ; 5/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

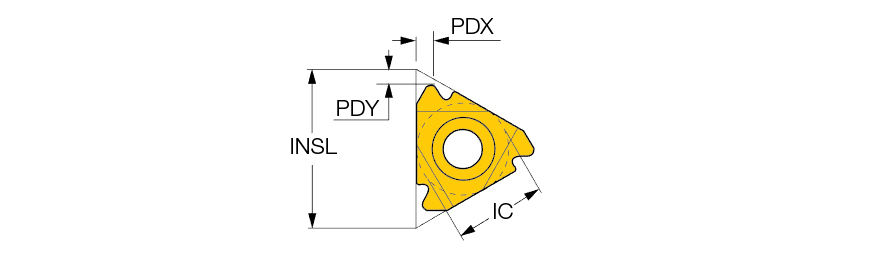

| Inscribed Circle Diameter (IC) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1.083″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 4 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0252″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Cutting Position | External | Thread Form Type (THFT) | API |
| Application | | External Threading | | Profile Distance EY (PDY) | 0.0787″ |
Product Features
| Family Description | External API - oil thread, round profile (API Spec 7-2) laydown threading inserts. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info. |
Shipping Info
Package Weight
0.052
