P290 EPW125-4-4.-W1.00-12

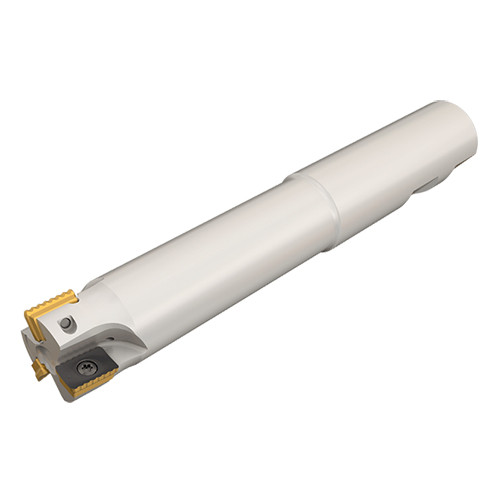

Indexable End Mill; 1-1/4″ Dia. × 0.472″ LOC × 1″ Shank Dia. × 4.72″ OAL × 1.65″ LU ; 4 FL ; Weldon Shank ; 90 Degrees

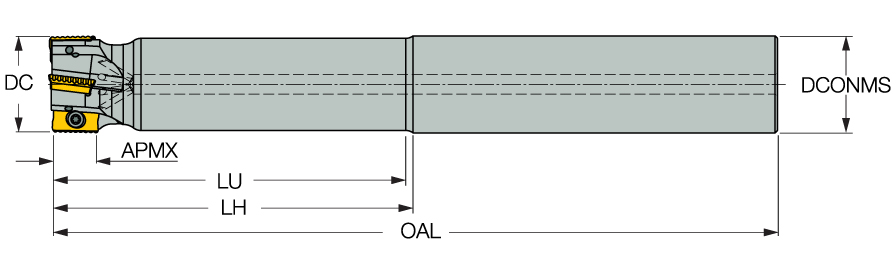

| Cutting Diameter (DC/DCX) | 1-1/4″ | Functional Length (LF) | 3.579″ |
| Cutting Diameter (DC) | 1-1/4″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 1.65″ |
| Depth of Cut Maximum (APMX) | 0.472″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4.72″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Rampdown | Shouldering | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | P290 ACKT 1204PDR-FW | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.8 Lbs |
Product Features
| Family Description | Long reach endmills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.990
