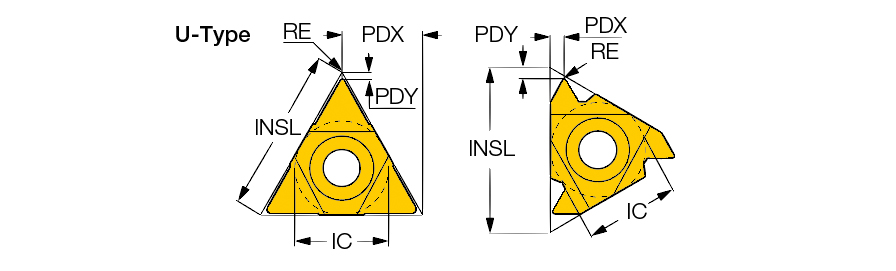

22IRM N 60 IC250
Laydown Threading Insert ; 60 Triangle Shape ; THFT | ; Carbide ; IC250 ; TiCN+TiN
| Thread Standard | THFT | | Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 0.19 mm | Threads per Inch Minimum (TPIN) | 5 Threads/" |
| Grade | IC250 | Threads per Inch Maximum (TPIX) | 7 Threads/" |
| Coating | TiCN+TiN | Thread Pitch Minimum (TPN) | 3.5 mm |
| Cutting Edge Material | Carbide | Thread Pitch Maximum (TPX) | 5 mm |
| Cutting Position | Internal | Tool Type | Threading Regular Inserts |
| Application | | Internal Thread Milling | Internal Threading lay down | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | | Body Material | Carbide |
| Shape | 60° Triangle | Thread Form Type (THFT) | VP60 |
Product Features
| Family Description | Internal 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general applications | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info". DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B |
Shipping Info
Package Weight
0.018
