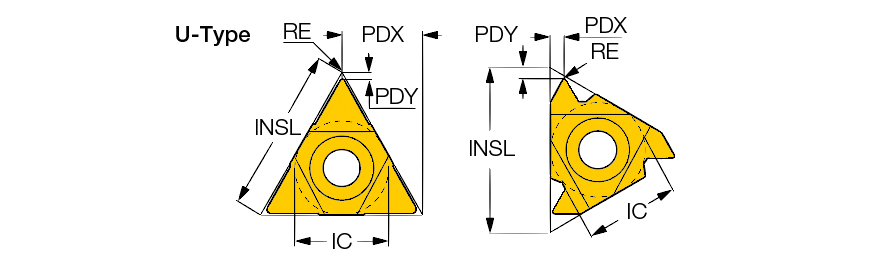

16EL AG 55 IC250
Laydown Threading Insert ; 60 Triangle Shape ; THFT | ; Carbide ; IC250 ; TiCN+TiN
| Thread Standard | THFT | | Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 0.07 mm | Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Grade | IC250 | Threads per Inch Maximum (TPIX) | 48 Threads/" |
| Coating | TiCN+TiN | Thread Pitch Minimum (TPN) | 0.5 mm |
| Cutting Edge Material | Carbide | Thread Pitch Maximum (TPX) | 3 mm |
| Cutting Position | External | Tool Type | Threading Regular Inserts |
| Application | | External Thread Milling | External Threading | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | | Body Material | Carbide |
| Shape | 60° Triangle | Thread Form Type (THFT) | VP55 |
Product Features
| Family Description | External 55° partial profile, laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general applications | Country of Origin | Israel |
| Remarks | For insert identification system, click on "More Info" For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT |
Shipping Info
Package Weight
0.009
