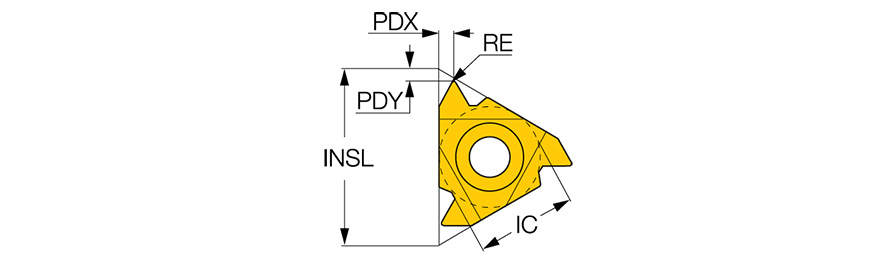

22ER N 60 IC228
Laydown Threading Insert ; 60 Triangle Shape ; THFT | ; Carbide ; IC228 ; TiCN+TiN
| Thread Standard | THFT | | Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 0.42 mm | Threads per Inch Minimum (TPIN) | 5 Threads/" |
| Grade | IC228 | Threads per Inch Maximum (TPIX) | 7 Threads/" |
| Coating | TiCN+TiN | Thread Pitch Minimum (TPN) | 3.5 mm |
| Cutting Edge Material | Carbide | Thread Pitch Maximum (TPX) | 5 mm |
| Cutting Position | External | Tool Type | Threading Regular Inserts |
| Application | | External Thread Milling | External Threading | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Shape | 60° Triangle | Thread Form Type (THFT) | VP60 |
Product Features
| Family Description | External 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - With a chipformer. Application: general applications | Country of Origin | Israel |

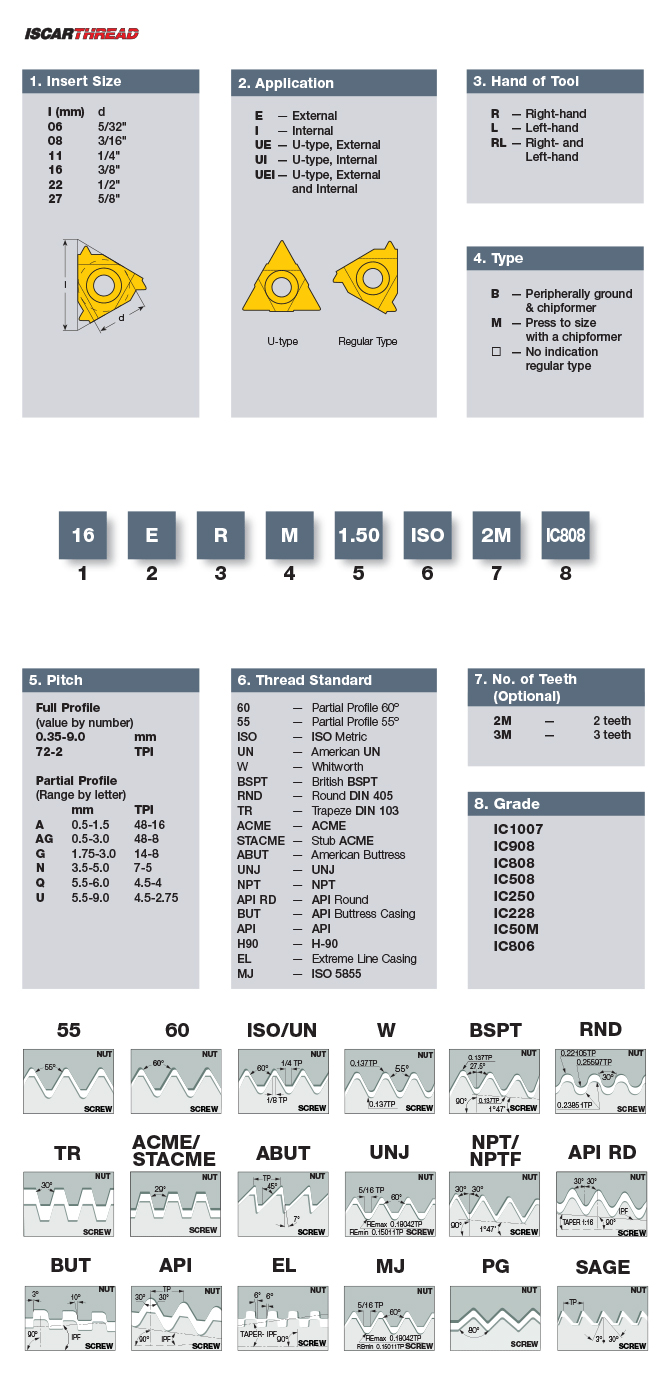

| Remarks | For Insert Identification System, click on "More Info" For threaing between walls use GRIP-type inserts SCIR/L B/F -MTR/L, TIP-MT, GEPI-MT, TIPI-MT DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A |
Shipping Info
Package Weight
0.027
