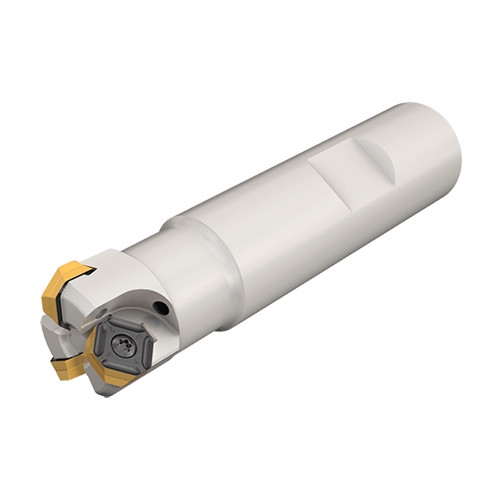

IQ845 ESYD1.25-5W1.25-R05
Indexable End Mill; 1-1/4″ Dia. × 0.1″ LOC × 1-1/4″ Shank Dia. × 4″ OAL ; 5 FL ; Weldon Shank ; 50 Degrees

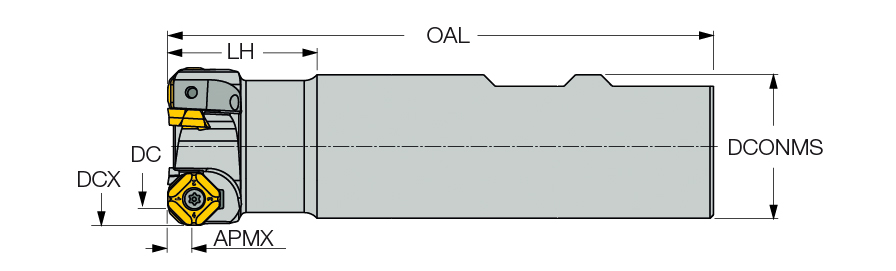

| Cutting Diameter (DC/DCX) | 1-1/4″ | Functional Length (LF) | 2.859″ |
| Cutting Diameter (DC) | 1-1/4″ | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 5 | Flute Count (NOF) | 5 |
| Depth of Cut Maximum (APMX) | 0.1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4″ | Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Slanted Shoulder & Chamfer | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | IQ845 SYHU 0503ADN-ML | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.23 Lbs | Cutting Diameter Maximum (DCX) | 1.48″ |
| Head Length (LH) | 1″ |
Product Features
| Family Description | 50° endmills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
1.391
