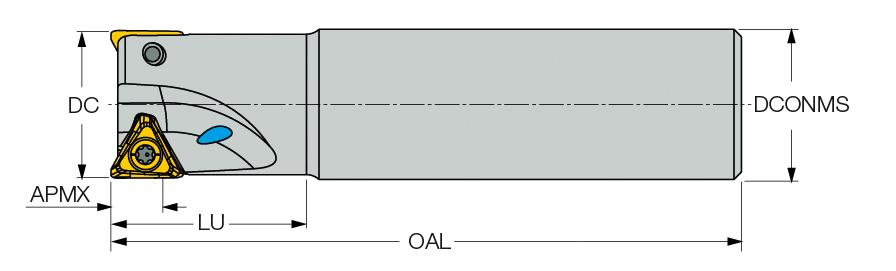

H690 E90AX D40-6-W32-10
| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 38 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 6 | Usable Length (LU) | 38 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 110 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 90° endmills carrying H690 TNKX 1005..triangular inserts with 6 helical cutting edges. | Country of Origin | IL |
| Remarks | For adaptation, click on "More Info". |
Shipping Info
Package Weight
1.5550
