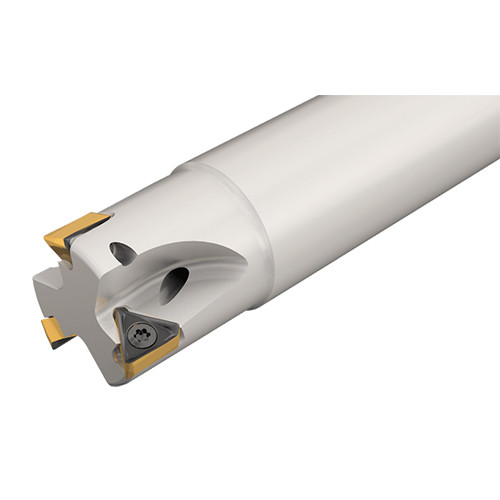

H690 E90AX D20-2-C20-10
Indexable End Mill; 20 mm Dia. × 8 mm LOC × 20 mm Shank Dia. × 110 mm OAL ; 2 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 26 mm |
| Cutting Diameter (DC) | 20 mm | Functional Length (LF) | 110 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 8 mm | Usable Length (LU) | 26 mm |
| Overall Length (OAL) | 110 mm | Flute Count (NOF) | 2 |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 2.8 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | H690 TNKX 100504PNTR | Body Material | Steel |
| Weight of Item (WT) | 0.23 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 90° endmills carrying H690 TNKX 1005..triangular inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.659
