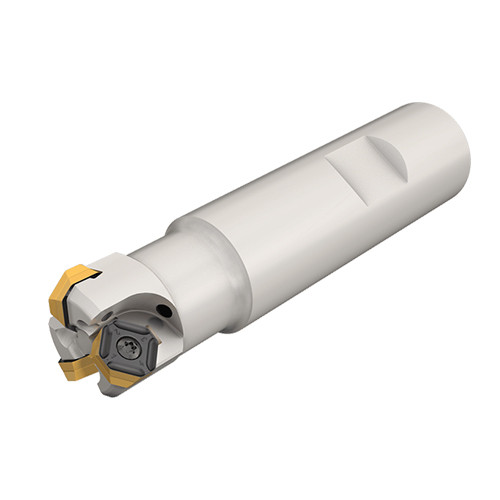

IQ845 ESY D040-06-W40-R05
Indexable End Mill; 40 mm Dia. × 2.6 mm LOC × 40 mm Shank Dia. × 110 mm OAL ; 6 FL ; Weldon Shank ; 50 Degrees

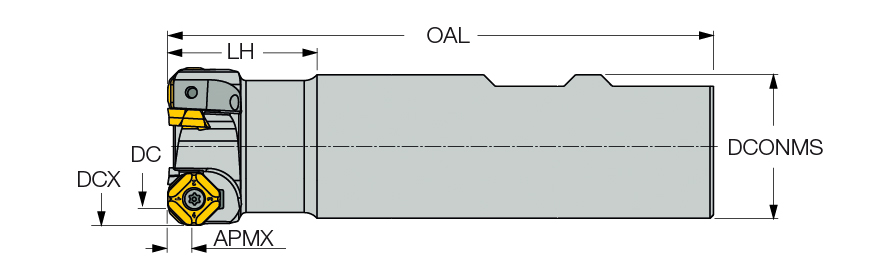

| Cutting Diameter (DC/DCX) | 40 mm | Functional Length (LF) | 70 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 6 | Flute Count (NOF) | 6 |
| Depth of Cut Maximum (APMX) | 2.6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Slanted Shoulder & Chamfer | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Master Insert Identification (MIID) | IQ845 SYHU 0503ADN-ML | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.05 Kg | Cutting Diameter Maximum (DCX) | 45.7 mm |
| Head Length (LH) | 26 mm |
Product Features
| Family Description | 50° endmills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
2.332
