31621 1/2X1/2X5/8X2-1/2 E

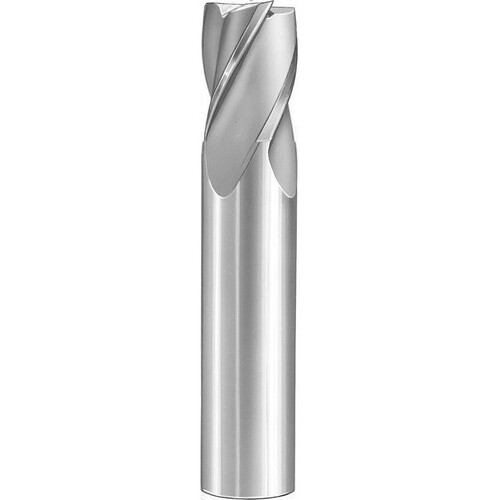

SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 2-1/2″ OAL ; 0″ RE ; 4 FL ; 1-7/8″ LBS ; Carbide ; Uncoated ; Series 16S
| Cutting Diameter (DC) | 1/2″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 1-7/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 16S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.24
