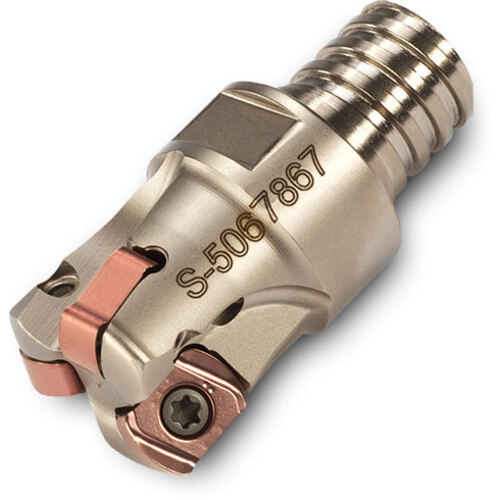

1TG1F-06008TRR01
Indexable End Mill; 5/8″ Dia. × 0.028″ LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.365″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Diameter | 0″ |
| Depth of Cut Maximum (APMX) | 0.028″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.55 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Hub Diameter (DHUB) | 0.6″ |
| Functional Length (LF) | 0.827″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Corner Radius (RE) | 0.06″ | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | 6 mm IC Insert with 4 indexes .040″ Max. depth of cut Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy | Country of Origin | Usa |
