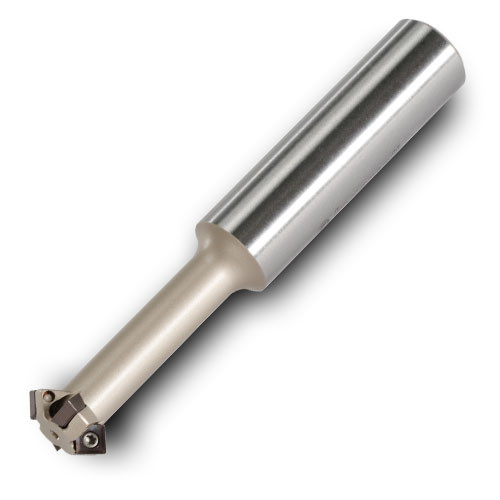

15N1D-06017S6R01
Indexable End Mill; 0.67″ Dia. × 0.13″ LOC × 5/8″ Shank Dia. × 4″ OAL × 1-1/2″ LU ; 45 Degrees
| Cutting Diameter (DC/DCX) | 0.67″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.428″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.13″ | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Body Material | Steel |
| Application | | Chamfering | Slanted Shoulder & Chamfer | | Protruding Length (LPR) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 0.67″ |
| Usable Length (LU) | 1-1/2″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.255
