3600 1/4X1/4X1X3

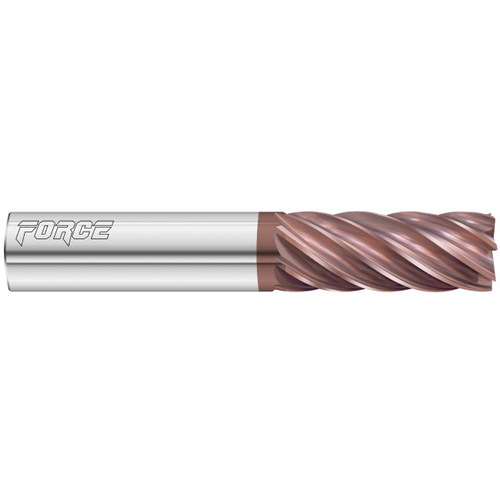

SQ End Mill; 1/4″ Dia. × 1″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 0″ RE ; 5 FL ; Carbide

Item # FT8536245

Brand: Fullerton Tool

MFG #: 36245

Legacy Part #: FT8536245

TradeName: 3600 Force End Mill

Cutting Diameter (DC)

1/4″

Flute Helix Angle (FHA)

Variable

Connection Diameter Machine Side (DCONMS)

1/4″

End Shape

Center Cutting

Depth of Cut Maximum (APMX)

1″

Usable Length (LU)

1″

Overall Length (OAL)

3″

Coolant Supply Property (CSP)

External

Cutting Edge Material

Carbide

Decimal Equivalent

0.25″

Coating

FC20

Series/List #

3600

Flute Count (NOF)

Product Features

Remarks

•Cutter diameter tolerance: +.0/-.002•Shank diameter tolerance: h6•Material used in: steels, stainless, high temp alloys, and Titanium•Center cutting

Country of Origin

USA

Package Length

3.50000

Package Width

.50000

Package Weight

0.08
