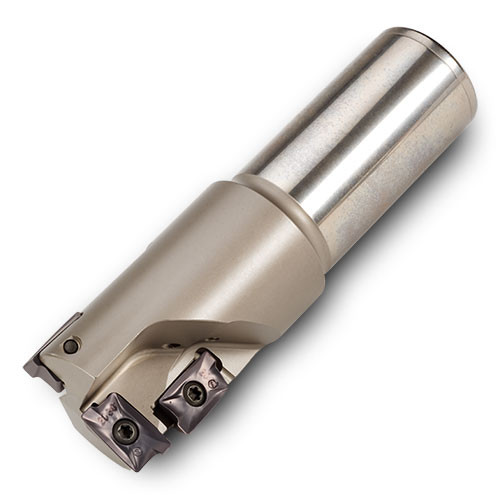

12S1E-1502781R01
Indexable End Mill; 1-1/2″ Dia. × 1.26″ LOC × 1-1/4″ Shank Dia. × 5″ OAL × 2-1/2″ LU ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 1 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 1.26″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Protruding Length (LPR) | 2-3/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 2-1/2″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.003
