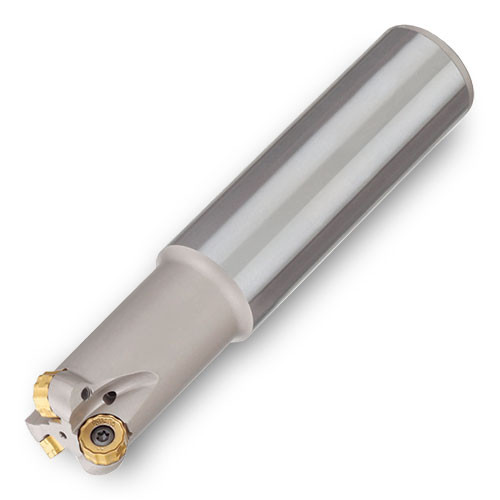

1DE1H-15022S5R01
Indexable End Mill; 1-1/2″ Dia. × 0.236″ LOC × 1-1/2″ Shank Dia. × 6″ OAL × 2.22″ LU
| Cutting Diameter (DC/DCX) | 1-1/2″ | Usable Length (LU) | 2.22″ |
| Cutting Diameter (DC) | 1.029″ | Corner Radius (RE) | 0.236″ |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 2-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | 12 mm IC Insert with 8-16 indexes .236″ (6 mm) Max. depth of cut Round & serrated inserts for application flexibility Serrated insert for long reach application & chip management Excellent performance & economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.005
