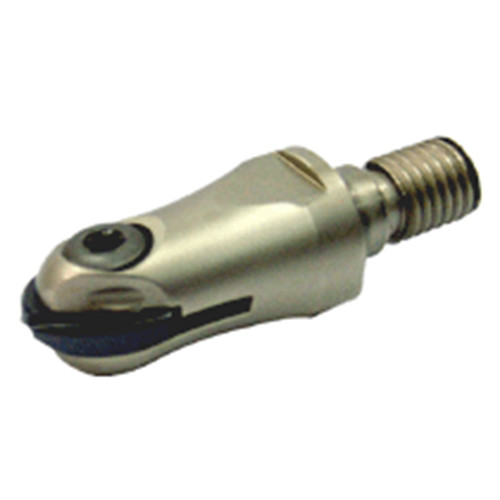

HCM D25/1.0-M16
Indexable End Mill; 0.984″ Dia. × 0.0386″ LOC × 1.142″ Shank Dia. × 2.795″ OAL ; 2 FL

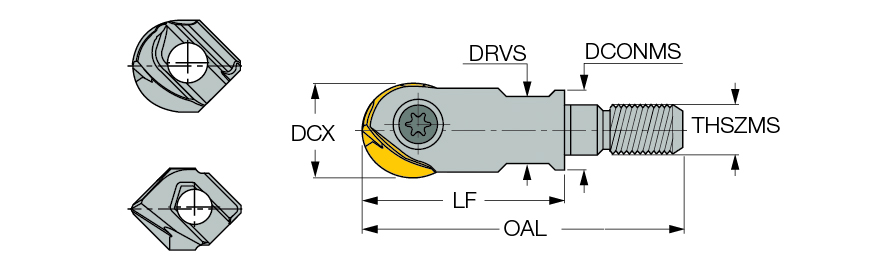

| Cutting Diameter (DC/DCX) | 0.984″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Diameter (DC) | 0.984″ | Drive Size (DRVS) | 0.984″ |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.0386″ | Torque (TQ) | 106 lbfxin |
| Overall Length (OAL) | 2.795″ | Corner Radius (RE) | 0.4921″ |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Countersinking | Drill Mill | Profiling | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HBR D250-QF | Body Material | Steel |
| Weight of Item (WT) | 0.35 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 1.811″ | Cutting Diameter Maximum (DCX) | 0.984″ |
| Tool Type | Ball nose endmills |
Product Features
| Family Description | Ball nose multifunction endmills with FLEXFIT threaded adaptation (BALLPLUS). Each tool can carry various milling insert geometries. | Country of Origin | Israel |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 |
Shipping Info
Package Weight
0.545
