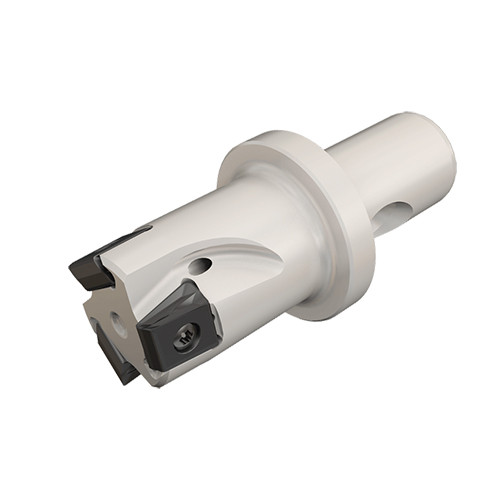

T490 ELN D2.00-5-CF4-13
Indexable End Mill; 2″ Dia. × 0.49″ LOC × 1.73″ Shank Dia. × 3.74″ OAL ; 5 FL ; CLICKFIT Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Head Length (LH) | 1.52″ |
| Cutting Diameter (DC) | 2″ | Functional Length (LF) | 2.086″ |
| Cutting Item Count (CICT) | 5 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.49″ | Flute Count (NOF) | 5 |
| Overall Length (OAL) | 3.74″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | CLICKFIT | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.73″ | Body Material | Steel |
| Master Insert Identification (MIID) | T490 LNHT 130616PNTR | Connection Code Machine Side (CCMS) | CLICKFIT |
| Weight of Item (WT) | 1.67 Lbs |
Product Features
| Family Description | Endmills with a CLICKFIT adaptation and tangentially clamped inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.764
