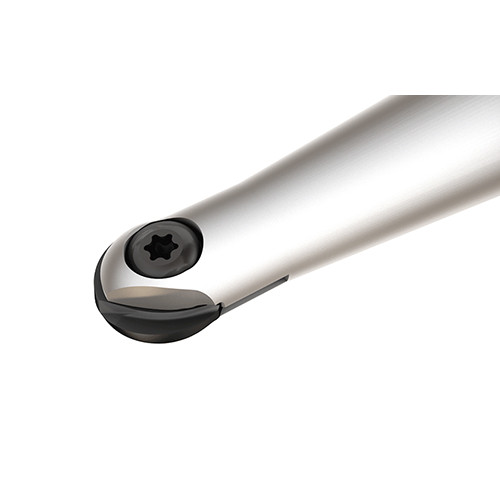

HCM D.75-D-L8.0-C1.0
Indexable End Mill; 3/4″ Dia. × 0.528″ LOC × 1″ Shank Dia. × 8″ OAL × 3-1/2″ LU ; 2 FL ; Round Shank

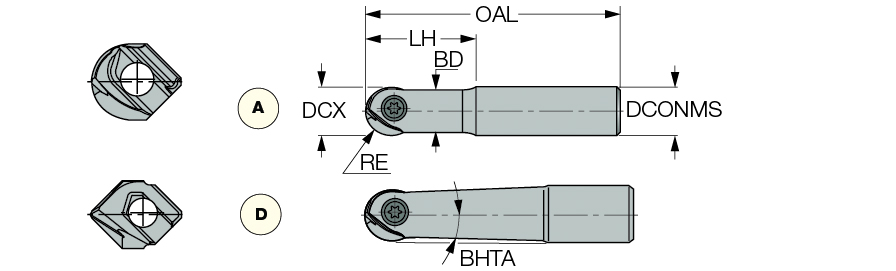

| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 3-1/2″ |
| Cutting Diameter (DC) | 3/4″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 1 | Torque (TQ) | 106 lbfxin |
| Depth of Cut Maximum (APMX) | 0.528″ | Corner Radius (RE) | 3/8″ |
| Overall Length (OAL) | 8″ | Body Half Taper Angle (BHTA) | 1 Degrees |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Front Type | D |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HBR D.75-QF | Measurement Type | Inch |
| Weight of Item (WT) | 1.37 Lbs | Body Material | Steel |
| Head Length (LH) | 3-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Ball nose endmills | Cutting Diameter Maximum (DCX) | 3/4″ |
Product Features
| Family Description | Ball nose multifunction endmills D=.750″ (BALLPLUS). Each tool can carry various milling insert geometries | Country of Origin | Israel |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info |
Shipping Info
Package Weight
2.204
