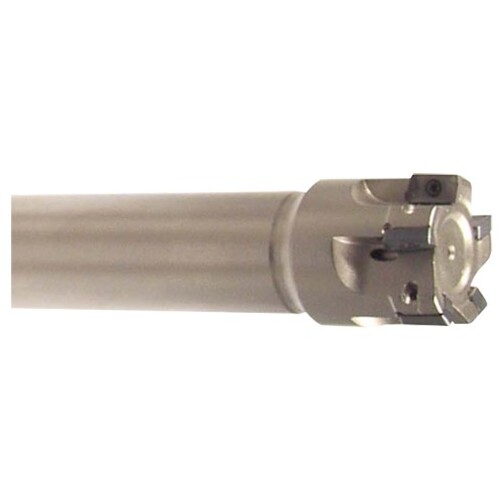

HP E90AN-D1.5-7-W1.0-7*
Indexable End Mill; 1-1/2″ Dia. × 0.303″ Max Depth × 1″ Shank Dia. × 4″ OAL ; 7 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.35″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 7 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.303″ | Flute Count (NOF) | 7 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | HP ANCT 070202 PN-R | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 1.19 Lbs |
Product Features
| Family Description | Endmills using HELIPLUS HP ANKT 0702.. inserts. Extra fine pitch endmills with very tight tool and insert tolerances for high production rates. Very strong and durable insert. Available are tools with and without coolant holes. | Country of Origin | Israel |
| Remarks | Insert tightening torque: 5.5 lbfxin For adaptation click on "More Info". |
