H400 ERD1.25-5-2.5W125-10

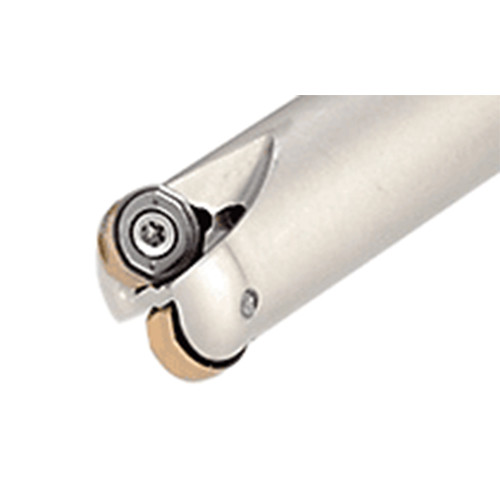

Indexable End Mill; 0.78″ Dia. × 0.295″ LOC × 1-1/4″ Shank Dia. × 5″ OAL ; Weldon Shank

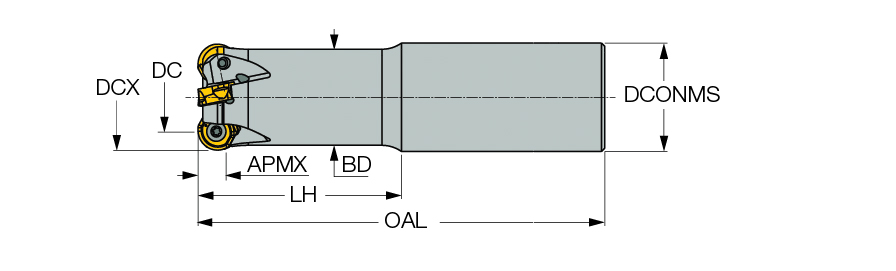

| Cutting Diameter (DC/DCX) | 0.78″ | Head Length (LH) | 2-1/2″ |
| Cutting Diameter (DC) | 0.78″ | Functional Length (LF) | 3.859″ |
| Cutting Item Count (CICT) | 5 | Tool Type | Round corner cutters |
| Depth of Cut Maximum (APMX) | 0.295″ | Body Diameter (BD) | 1.15″ |
| Overall Length (OAL) | 5″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 3.8 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | H400 RNHU 1004-ML | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Weight of Item (WT) | 1.32 Lbs |
Product Features
| Family Description | Endmills carrying double-sided inserts with four .197″ radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.506
