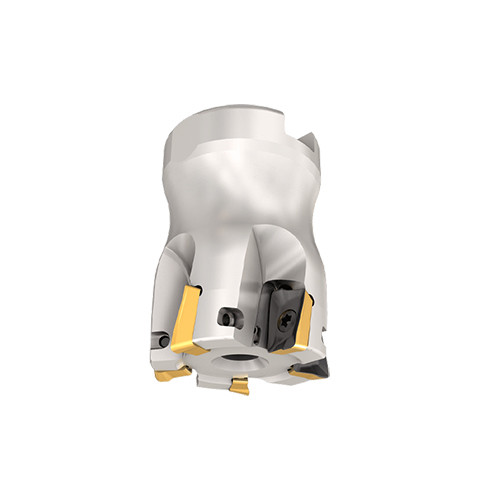

H490 E90AX D80-5-17-L73C6

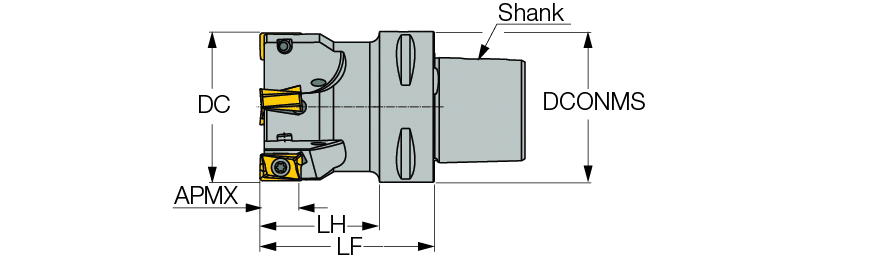

| Cutting Diameter (DC/DCX) | 3.15″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 3.15″ | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 5 | Usable Length (LU) | 1.968″ |
| Depth of Cut Maximum (APMX) | 0.64″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 90° endmills with CAMFIX shanks carrying H490 ANKX 17... double-sided rectangular inserts with 4 helical cutting edges. May be used for heavy applications. (HELIDO 490 Line). | Country of Origin | IL |
| Remarks | For adaptation, click on "More Info" |
Shipping Info
Package Weight
4.4360
