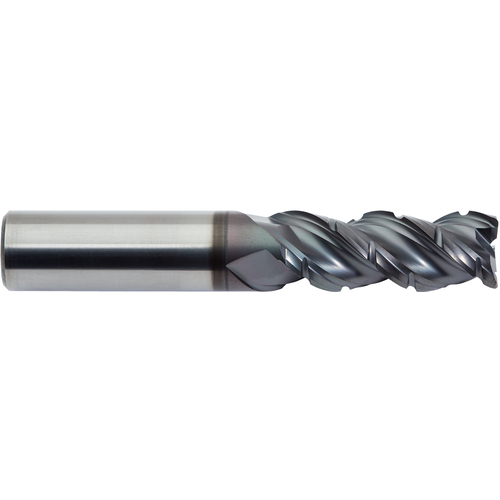

3/4? Dia. × 3/4? Shank × 1? DOC × 4? OAL, Carbide, Gem+, 3 Flute, Straight, Corner Radius, Solid End Mill
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 0.03″ RE ; 3 FL ; 1-1/4″ LBS ; Carbide ; DLC ; Series 334
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Tool Type | Single-End|High Performance |
| Coating | DLC | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Series/List # | 334 |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Family Description | Alternate Manufacture # 33432 | Country of Origin | USA |
Shipping Info
Package Weight
0.931
