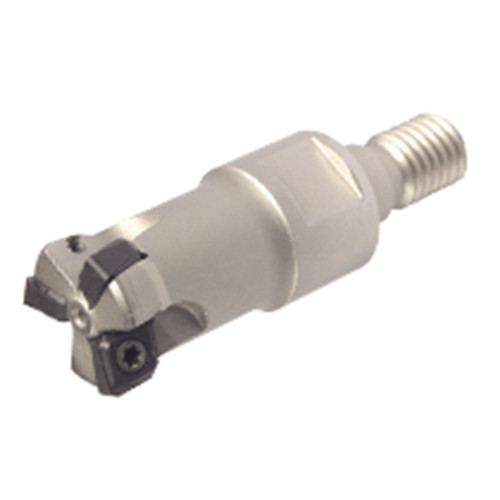

E93CN D1.00-4-M12-07

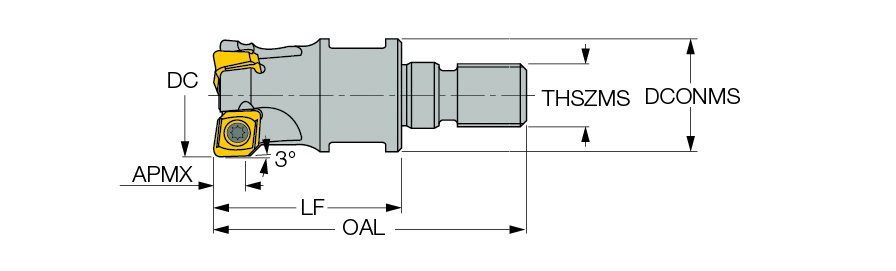

| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 1.38″ |
| Cutting Diameter (DC) | 1″ | Tool Type | Toroidal endmills |
| Cutting Item Count (CICT) | 4 | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Depth of Cut Maximum (APMX) | 0.2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.24″ | Tool Cutting Edge Angle (KAPR) | 93 Degrees |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Undercutting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.83″ | Body Material | Steel |
| Master Insert Identification (MIID) | CNHT 070315 | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.21 Lbs |
Product Features
| Family Description | Endmills with FLEXFIT threaded adaptation carrying toroidal inserts (TORMILL). Used for undercutting, for the finish cut of steep or vertical walls, thin walls, long and unsupported workpieces and parts with non-rigid clamping. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 |
Shipping Info
Package Weight
0.335
