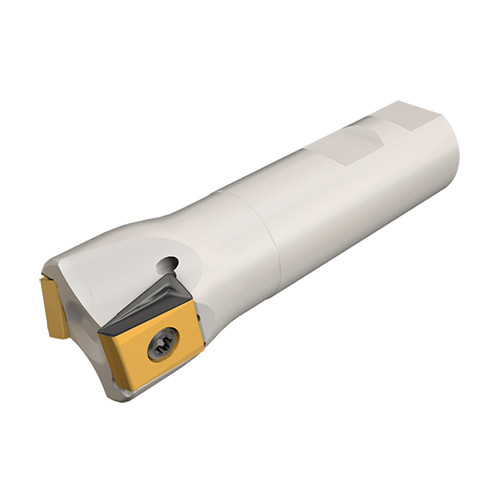

T490 ELN D1.25-2-W1.00-16
Indexable End Mill; 1-1/4″ Dia. × 0.63″ LOC × 1″ Shank Dia. × 4″ OAL ; 2 FL ; Weldon Shank ; 90 Degrees

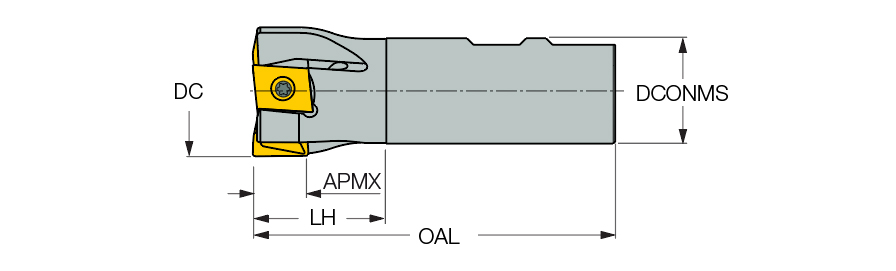

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1.57″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.63″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | T490 LNHT 160708PNR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.77 Lbs |
Product Features
| Family Description | 90° endmills carrying T490 LNMT 16... tangentially clamped inserts with 4 helical, .630″ long cutting edges (HELITANG T490Line). | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.030
