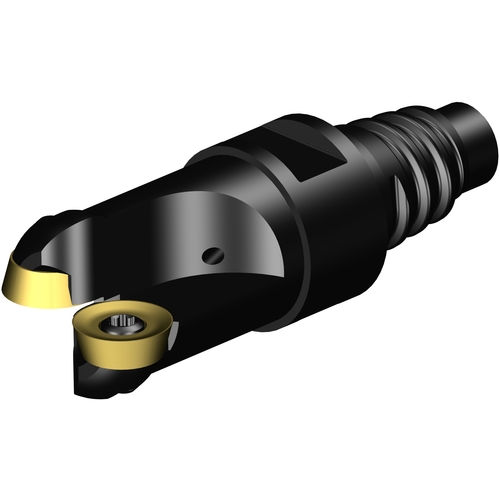

R300-16EH16-08L CM300 PROFILE CUTTER
Indexable End Mill; 8 mm Dia. × 4 mm LOC × 15.5 mm Shank Dia. × 47 mm OAL ; Threaded Shank
| Cutting Diameter (DC/DCX) | 8 mm | Connection Diameter Machine Side (DCONMS) | 15.5 mm |
| Cutting Diameter (DC) | 8 mm | Head Length (LH) | 21.3 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 4 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 47 mm | Model Number | R300-16EH16-08L |
| Shank Type | Threaded |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.194
