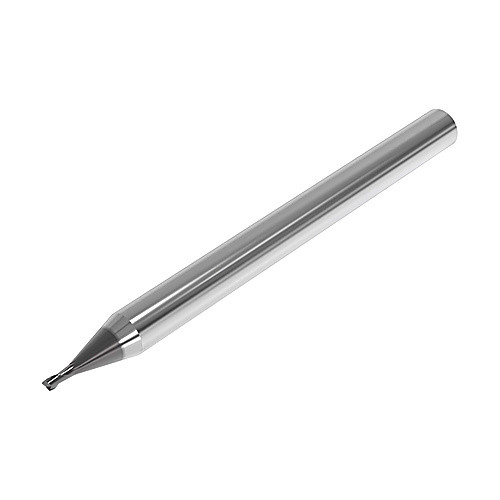

JME542010G1R010.0Z2-SIRA
SQ End Mill; 1 mm Dia. × 1.5 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 0.1 mm RE ; 2 FL ; Carbide ; SIRON-A ; Series JME542
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1.5 mm | Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Series/List # | JME542 |
| Coating | SIRON-A | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.8
