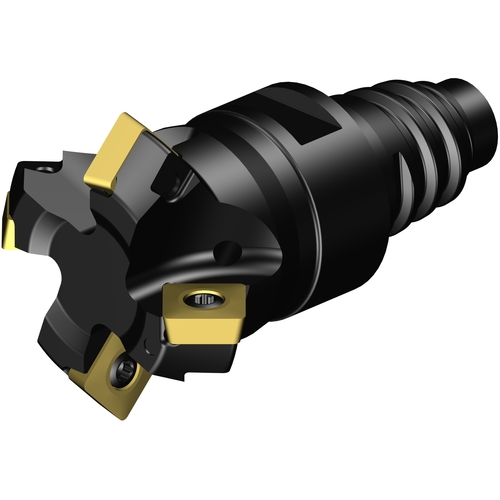

495-025EH25-4509H COROMILL 495
Indexable End Mill; 25.5 mm Dia. × 5.5 mm LOC × 24.2 mm Shank Dia. × 59 mm OAL ; Threaded Shank
| Cutting Diameter (DC/DCX) | 25.5 mm | Connection Diameter Machine Side (DCONMS) | 24.2 mm |
| Cutting Diameter (DC) | 25.5 mm | Head Length (LH) | 24.04 mm |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 5.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 59 mm | Model Number | 495-025EH25-4509H |
| Shank Type | Threaded |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.373
