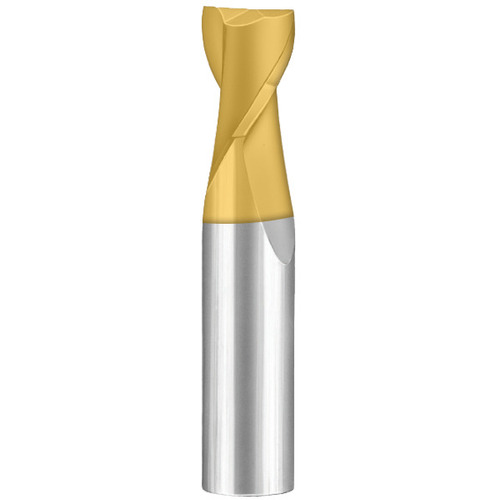

1.0 End Mill 2FL SQ TN - SER 17S 1x3x2x38
Square End Mill; 1 mm Dia. × 2 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 2 FL ; Carbide ; TN ; Series 17S
| Cutting Diameter (DC) | 1 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 36 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Corner Radius (RE) | None |
| Overall Length (OAL) | 38 mm | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TN | Decimal Equivalent | 0.0394″ |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 17S |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.010
