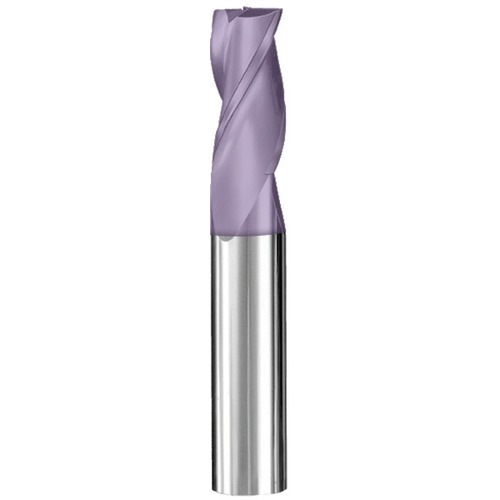

2.5 End Mill 3FL SQ TC - SER 05S 2.5x3x9.5x38
Square End Mill; 2.5 mm Dia. × 9.5 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 3 FL ; Carbide ; TC ; Series 05S
| Cutting Diameter (DC) | 2.5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 9.5 mm | Usable Length (LU) | 29 mm |
| Overall Length (OAL) | 38 mm | Corner Radius (RE) | None |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | TC | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 05S |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.012
