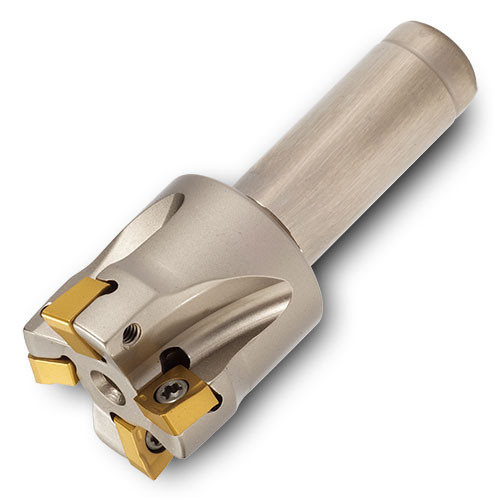

1TJ1C-15007S4R01
Indexable End Mill; 1-1/2″ Dia. × 0.18″ LOC × 1/2″ Shank Dia. × 1-3/4″ OAL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 3/4″ |
| Cutting Item Count (CICT) | 7 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.18″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 1-3/4″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.3 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Shank ideal for ER Spring collets 32-63 Ra surface finishes when engaging the wiper (WEP) Double-Dovetail-Pocket fosters easy insert indexing & eliminates insert screw stress | Country of Origin | Usa |
