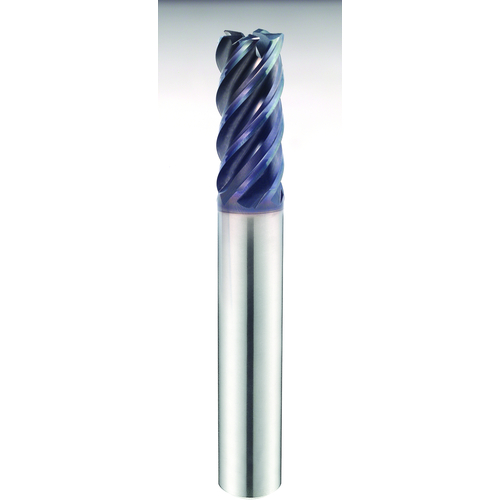

Square End Mill; 20 mm Dia. × 44 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 5 FL ; Carbide ; Y-Coating ; Series GMG27
| Cutting Diameter (DC) | 20 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 44 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Overall Length (OAL) | 104 mm | Tool Type | Square End |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.7874″ |
| Coating | AlCrN | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Series/List # | GMG27 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.125
Package Height
1.125
Package Weight
0.935
