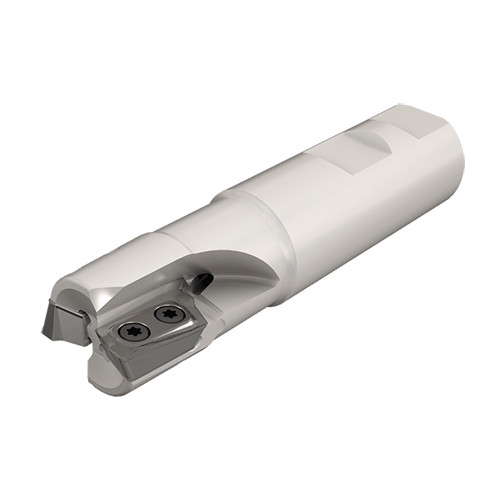

HP E90AT-D1.50-3-W1.25-19
Indexable End Mill; 1-1/2″ Dia. × 0.72″ LOC × 1-1/4″ Shank Dia. × 4″ OAL × 1.7″ LU ; 3 FL ; Weldon Shank ; 90 Degrees

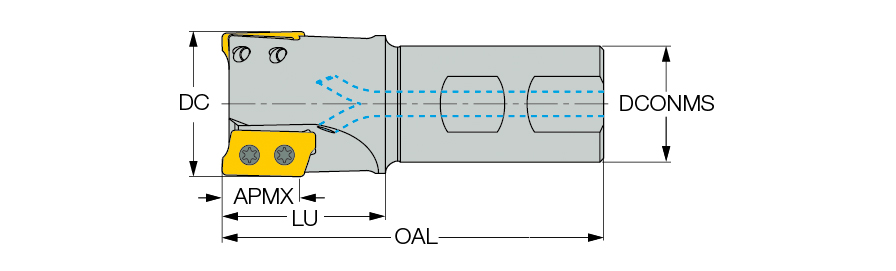

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.7″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.72″ | Usable Length (LU) | 1.7″ |
| Overall Length (OAL) | 4″ | Flute Count (NOF) | 3 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 6 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HP ADCR 190604PDFR-P | Body Material | Steel |
| Weight of Item (WT) | 1.17 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills carrying HP AD.. 1906.. inserts with .709″ long and helical cutting edges. | Country of Origin | Israel |
| Remarks | First loosely attach the inner clamping screw, then the outer one. In the same order tighten them both. For adaptation, click on More Info. |
Shipping Info
Package Weight
1.411
