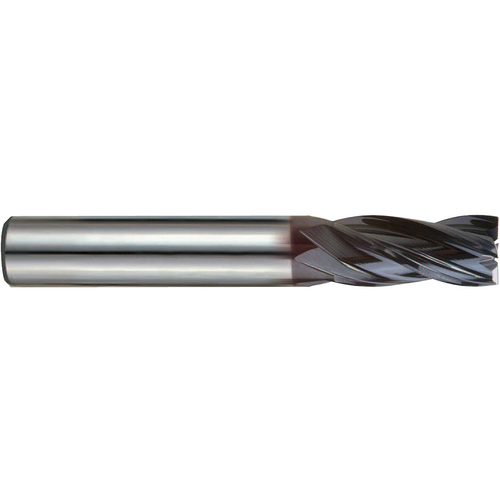

Square End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EMD39
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Chamfer Width (CHW) | 0.38 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Tool Type | High Performance |
| Overall Length (OAL) | 92 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.6299″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | EMD39 |
| Flute Helix Angle (FHA) | Multiple | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.0157
Package Width
0.9449
Package Height
0.9449
Package Weight
0.526995
