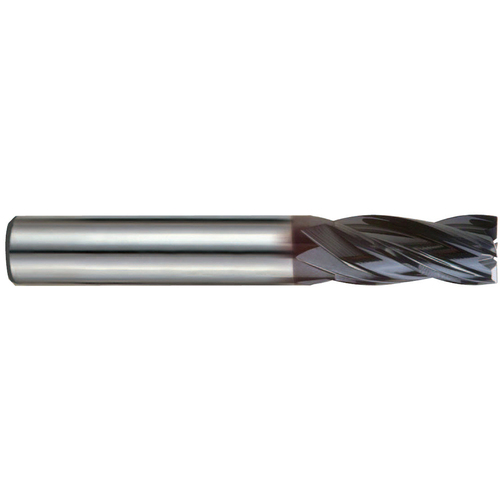

Square End Mill; 25 mm Dia. × 38 mm LOC × 25 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EMD38
| Cutting Diameter (DC) | 25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Corner Chamfer Width (CHW) | 0.56 mm |
| Depth of Cut Maximum (APMX) | 38 mm | Tool Type | High Performance |
| Overall Length (OAL) | 104 mm | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.9843″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | EMD38 |
| Flute Helix Angle (FHA) | Multiple | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.9055
Package Width
1.378
Package Height
1.378
Package Weight
1.466325
