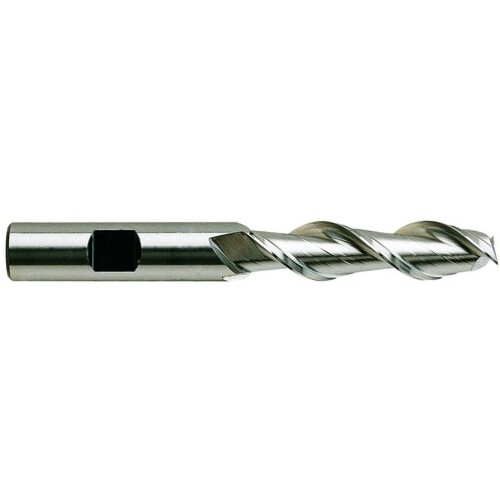

Square End Mill; 7/16″ Dia. × 1-3/4″ LOC × 1/2″ Shank Dia. × 3-3/4″ OAL ; 2 FL ; HSS ; TiN ; Series E1071
SQ End Mill; 7/16″ Dia. × 1-3/4″ LOC × 1/2″ Shank Dia. × 3-3/4″ OAL ; 2 FL ; HSS ; TiN ; Series E1071
| Cutting Diameter (DC) | 7/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Tool Type | 2FL SE HSS, 42 Degrees Helix Long Length for Aluminum |
| Overall Length (OAL) | 3-3/4″ | Length Group | Long |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.4375″ |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E1071 |
| Flute Helix Angle (FHA) | 42 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.164
