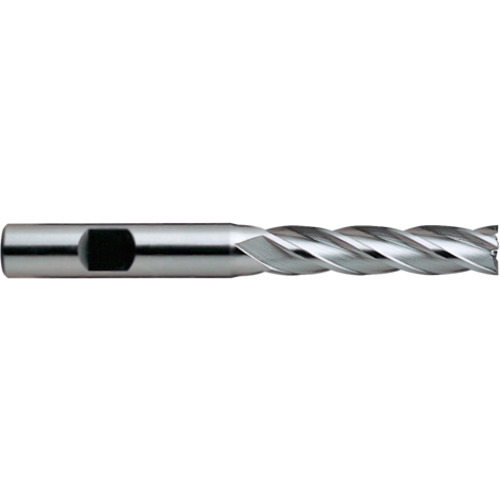

Square End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSSCo8 ; TiN ; Series E2034
SQ End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSSCo8 ; TiN ; Series E2034
| Cutting Diameter (DC) | 3/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 3″ | Tool Type | HSSCo8 and HSS, 4 Flute Long Length |
| Overall Length (OAL) | 5-1/4″ | Length Group | Long |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 0.75″ |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E2034 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | No |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.875
Package Width
1.25
Package Height
1.25
Package Weight
0.583
