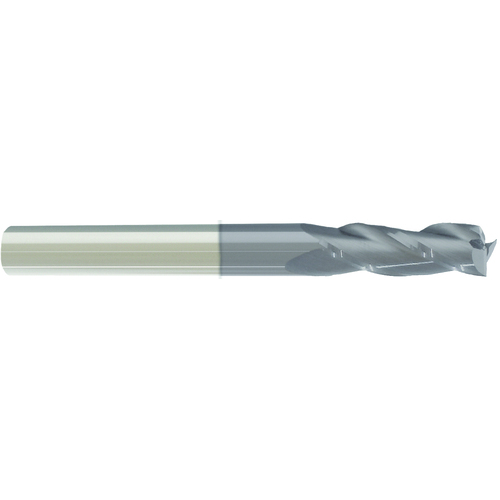

7/32″ × 1/4″ × 5/8″ × 2 1/2″ 3 Flute Single End Carbide Finishing Center Cutting End Mill-ALTiN Series/List #5941T
SQ End Mill; 7/32″ Dia. × 5/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; 5/8″ LBS ; Carbide ; AlTiN ; Series 5941T
| Cutting Diameter (DC) | 7/32″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.2188″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5941T |
| End Shape | Square | Trade Name | SOLID MASTER |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.064
