5971T 7/16 × 7/16 4FL

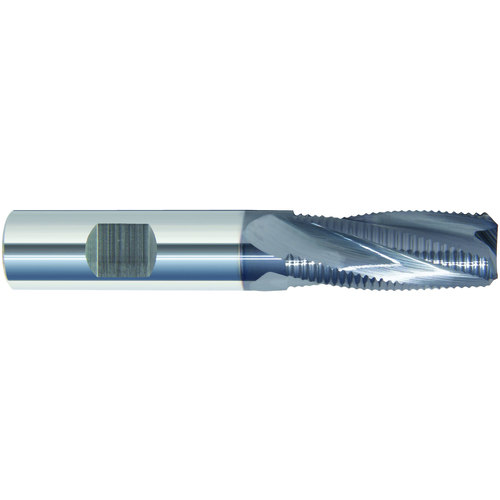

SQ End Mill; 7/16″ Dia. × 1″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 0.02″ RE ; 4 FL ; Carbide ; AlTiN ; Series 5971T
| Cutting Diameter (DC) | 7/16″ | Corner Radius (RE) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 1″ | Length Group | Stub |
| Overall Length (OAL) | 2-3/4″ | Flute Type | Fine Pitch |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Roughing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4375″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | 5971T |
| Usable Length (LU) | 1″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Application | Roughing |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
