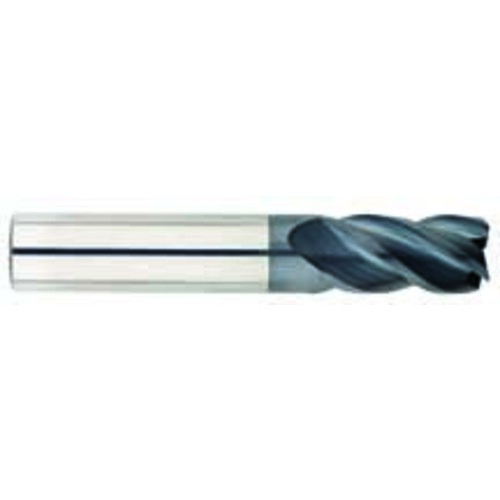

5995 VARIFLUTE 5/16 4FL
SQ End Mill; 5/16″ Dia. × 3/4″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; 3/4″ LBS ; Carbide ; AlTiN ; Series 5995
| Cutting Diameter (DC) | 5/16″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3125″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5995 |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.094
