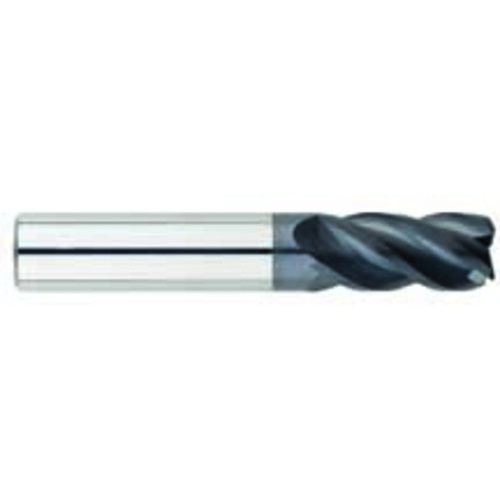

3/4″ × 3/4″ × 1 1/2″ × 6″ 0.0300-0.0350″ C/R 4 Flute Single End Carbide HPE High Performance End Mill-AlTiN Series/List #5994
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 0.03″ - 0.035″ RE ; 4 FL ; Carbide ; AlTiN ; Series 5994
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.03″ - 0.035″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Single End |
| Overall Length (OAL) | 6″ | Length Group | Extended |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5994 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ - 0.035″ |
| Usable Length (LU) | 1-1/2″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.75000
Package Width
.75000
Package Height
.75000
Package Weight
1.33
