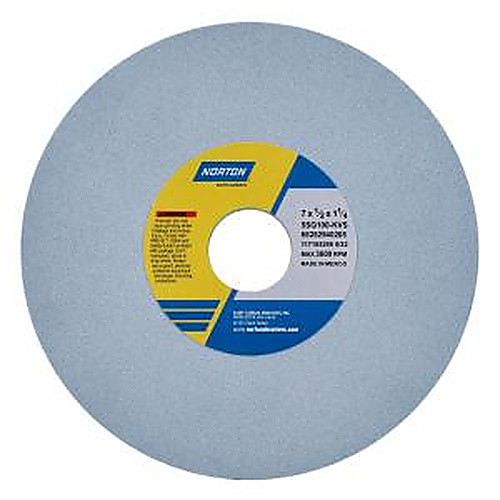

7X1/2X1-1/4 5SG-100K T1
Surface Grinding Wheel ; Type 01 ; 7″ Dia. × 1/2″ W ; 1-1/4″ Arbor ; 100 Grit ; K Hardness ; Ceramic Alumina ; Vitrified ; Fine ; 3,600 Max. RPM ; 1/2″ Thickness
| Diameter | 7″ | Specification | 5SG100-KVS |
| Width | 1/2″ | Color | Blue |
| Arbor Hole | 1-1/4″ | Recess Type | No Recess |
| Grit | 100 | Thickness | 1/2″ |
| Hardness | K | Standard Pack | 1 |
| Abrasive Material | Ceramic Alumina | For Use With | CNC Cutting Tool Machine|Surface Grinder|Cylindrical Grinder |
| Wheel Type | Type 01 | Porosity | Porous |
| Bond Type | Vitrified | Tapered | No |
| Grade | Fine | Material Application | Super Alloys|Ductile Iron|Hard Carbon Steels|Cast Iron|Titanium|Gray Iron|400 Series Stainless|Tool Steels |
| Maximum RPM | 3,600 | Hardness Rating | Medium |
Product Features
| Remarks | •Toolroom Wheel >4″,Toolroom Wheels •Double your stock removal rate versus standard abrasives at a low per-job cost with the versatile SG 5SG CA Type 01 >4-inch toolroom wheel. Engineered with a powerful bond and an ultra high-performance, self-sharpening ceramic alumina and friable aluminum oxide abrasive blend, this wheel cuts, grinds and sharpens tools, dies, and other surfaces fast, with minimal burn and dressing, keeping them sharp longer. Use the wheel with CNC cutting machines and cylindrical and surface grinders to work titanium; aerospace and other super alloys; cast, ductile and gray iron; and hard-carbon, tool, and 400-series stainless steels. •Type 01 straight wheels with high-performance ceramic alumina and friable aluminum oxide blend for fast stock removal and cool, superior cutting; last 3 - 5X longer than aluminum oxide wheels; 2X rough stock removal vs. conventional abrasives •High performance bond for versatility (for grinding high sped tool steels, hardened and soft steels, and aerospace alloys) and exceptional form holding •Self-sharpening abrasive minimizes burn and dressing, to maximize sharp edge on tools and dies for longer life in production •Outstanding choice for high productivity, low total per-part grinding cost on CNC cutting tool machines, and cylindrical, and surface grinders •Made in USA in ISO certified facility | Country of Origin | Mexico |
Shipping Info
Package Length
7.00000
Package Width
7.00000
Package Height
.50000
Package Weight
1.38
