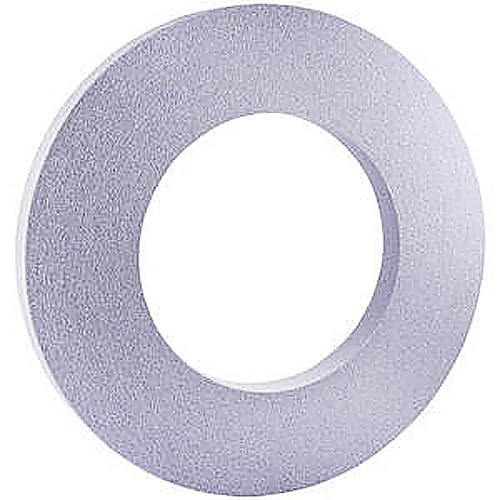

14″ × 1″ × 8″ 32A Surface/Cylindrical Wheel Type 01 Straight 60 Grit Aluminum Oxide
Surface Grinding Wheel ; Type 01 ; 14″ Dia. × 1″ W ; 8″ Arbor ; 60 Grit ; I Hardness ; Aluminum Oxide ; Vitrified ; Medium ; 1,800 Max. RPM ; 1″ Thickness
| Diameter | 14″ | Specification | 32A60-IVBE |
| Width | 1″ | Color | Purple |
| Arbor Hole | 8″ | Recess Type | No Recess |
| Grit | 60 | Thickness | 1″ |
| Hardness | I | For Use With | CNC Cutting Tool Machine|Surface Grinder|Cylindrical Grinder |
| Abrasive Material | Aluminum Oxide | Porosity | Porous |
| Wheel Type | Type 01 | Tapered | No |
| Bond Type | Vitrified | Material Application | Ductile Iron|Aluminum|Hard Carbon Steels|Cast Iron|Gray Iron|400 Series Stainless|Tool Steels|Soft Carbon Steels |
| Grade | Medium | Hardness Rating | Medium |
| Maximum RPM | 1,800 |
Product Features
| Remarks | •Exceedingly strong, sharp monocrystalline aluminum oxide grain, often used in precision production medium to heavy stock removal applications •The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding •Grinds with an exceptional cool, fast cutting action, requires minimum dressing •Particularly suited for grinding all kinds of tool steels, including tough vanadium alloy steels, with moderate to heavy feed rates •Outstanding form holding •Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation. | Country of Origin | USA |
Shipping Info
Package Weight
7.85
