5/32 4FL DE STUB SC EM TA

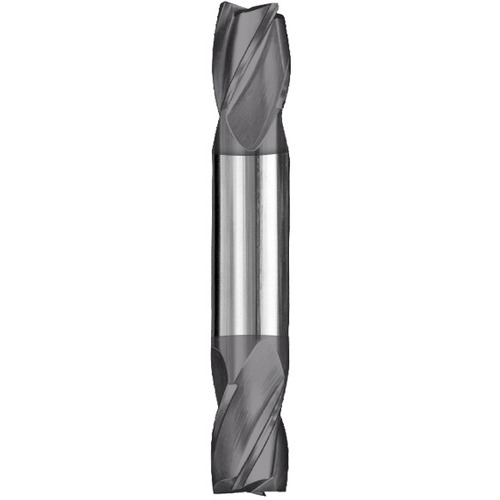

SQ End Mill; 5/32″ Dia. × 5/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 0″ RE ; 4 FL ; 1.688″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/32″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5/16″ | Usable Length (LU) | 1.688″ |
| Overall Length (OAL) | 2″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.15625″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.019
